Datalogic QuickScan QBT2400/QBT2430 USB 1D/2D Wireless for Portable Handheld Barcode Scanner IP42 Environmental Sealing

添加时间:2025-12-13 20:31:51

来源:

添加时间:2025-12-13 20:31:51

评分:

防伪码:XTVUbw7IGJWjXi9sjSS688

Datalogic QuickScan QBT2400 QBT2430 usb 1d 2d wireless blue tooth bar code qr code portable hand held barcode scanner







FEATURESINDUSTRY

• Blue tooth wireless technology with up to  25.0 m / 82.0 ft range

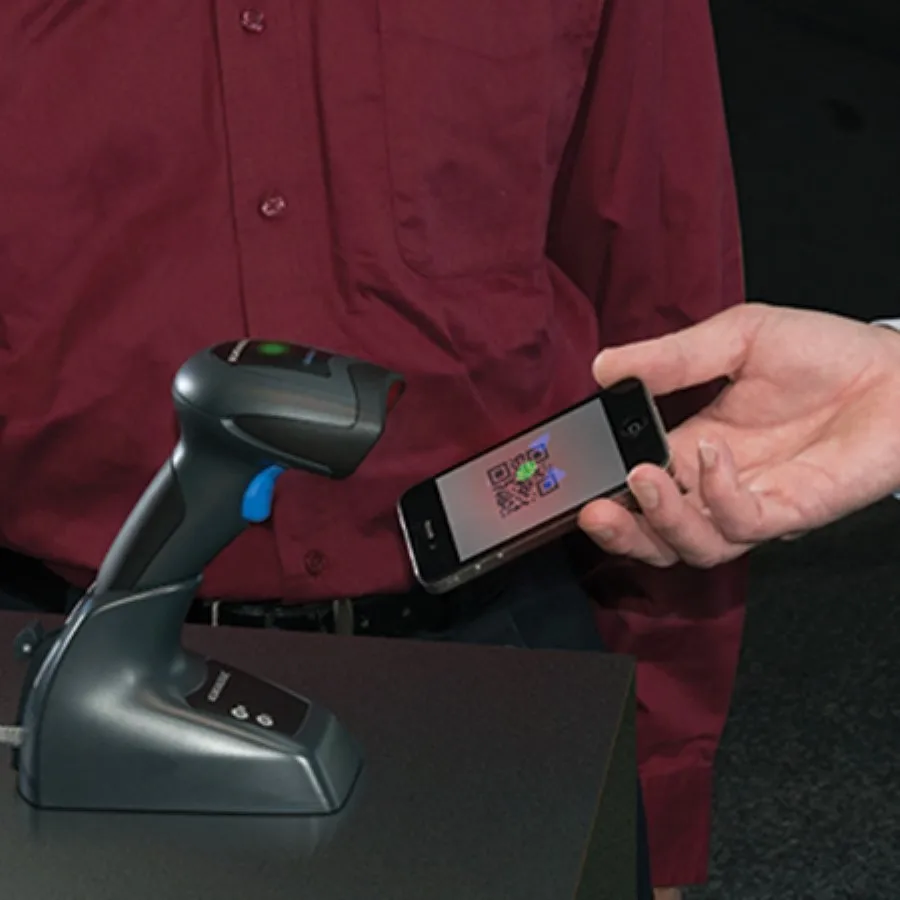

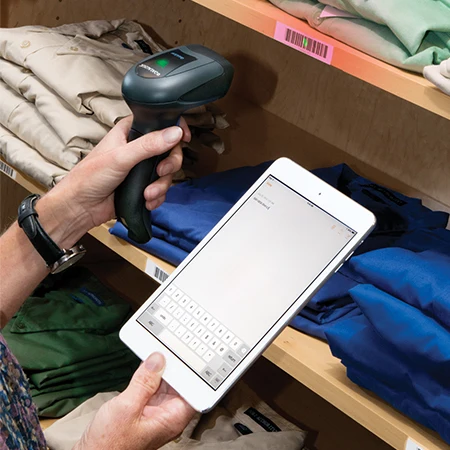

• Compatible with Android and iOS devices through the Blue tooth HID profile

• Easy, tool-free, user-replaceable, long-lasting lithium-ion battery

• Alternative battery recharging through USB /microUSB cable

• Latch mechanism secures reader in cradle providing stable mobility for use on carts

• New battery package allows simultaneous charging contacts change at battery replacement

• Reduced visual stress with LED-based aiming system

• Datalogic’s patented ‘Green Spot’ technology for good-read feedback

• Batch Mode capability: +500 linear codes stored in memory

• EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI





APPLICATIONS

• Retail

• Point of Sale Checkout

• Shelf Replenishment

• Goods Receiving

• Inventory

• Commercial Services

• Postal

• Banks

• Public Administration

• Utilities



READING PERFORMANCE

IMAGER SENSOR: Wide VGA: 752 x 480 pixels

LIGHT SOURCE:  Aiming: 2 Blue LED’s; Illumination: Red LED 610 - 650 nm

MOTION TOLERANCE: 25 IPS

PRINT CONTRAST RATIO (MINIMUM): 25%

READING ANGLE: Pitch: +/- 65°; Roll (Tilt): +/- 360°; Skew (Yaw):  +/- 60°

READING INDICATORS: Beeper (Adjustable Tone and Volume); Datalogic ‘Green Spot’ Good Read Feedback; Good Read LED

RESOLUTION (MAXIMUM): 0.102 mm / 4 mils (Linear Codes)



CORDLESS COMMUNICATIONS

BLUE TOOTH WIRELESS TECHNOLOGY Piconet: Max. Readers per Radio Receiver Using Commercial Dongle: 7; Using Cradle: 1

PROFILES: HID (Human Interface Device)

PROTOCOL: Blue tooth 3.0 Certified Class 2

RADIO FREQUENCY: 2.4 GHz

RADIO RANGE (OPEN AIR): 25.0 m / 82.0 ft

 Range distances are measured using the base station.

 Range with connection to other Blue tooth peripherals may show different results.



BATTERY

Battery Type: Lithium-Ion 1400 mAh

Charge Time: External Power: < 3 hrs @ 12 VDC;

Reads per Charge: 30,000 +

INPUT VOLTAGE: 4.75 - 14 VDC





Datalogic QuickScan QBT2400 QBT2430 usb 1d 2d wireless blue tooth bar code qr code portable hand held barcode scannerDatalogic QuickScan QBT2400 QBT2430 usb 1d 2d wireless blue tooth bar code qr code portable hand held barcode scannerDatalogic QuickScan QBT2400 QBT2430 usb 1d 2d wireless blue tooth bar code qr code portable hand held barcode scanner
